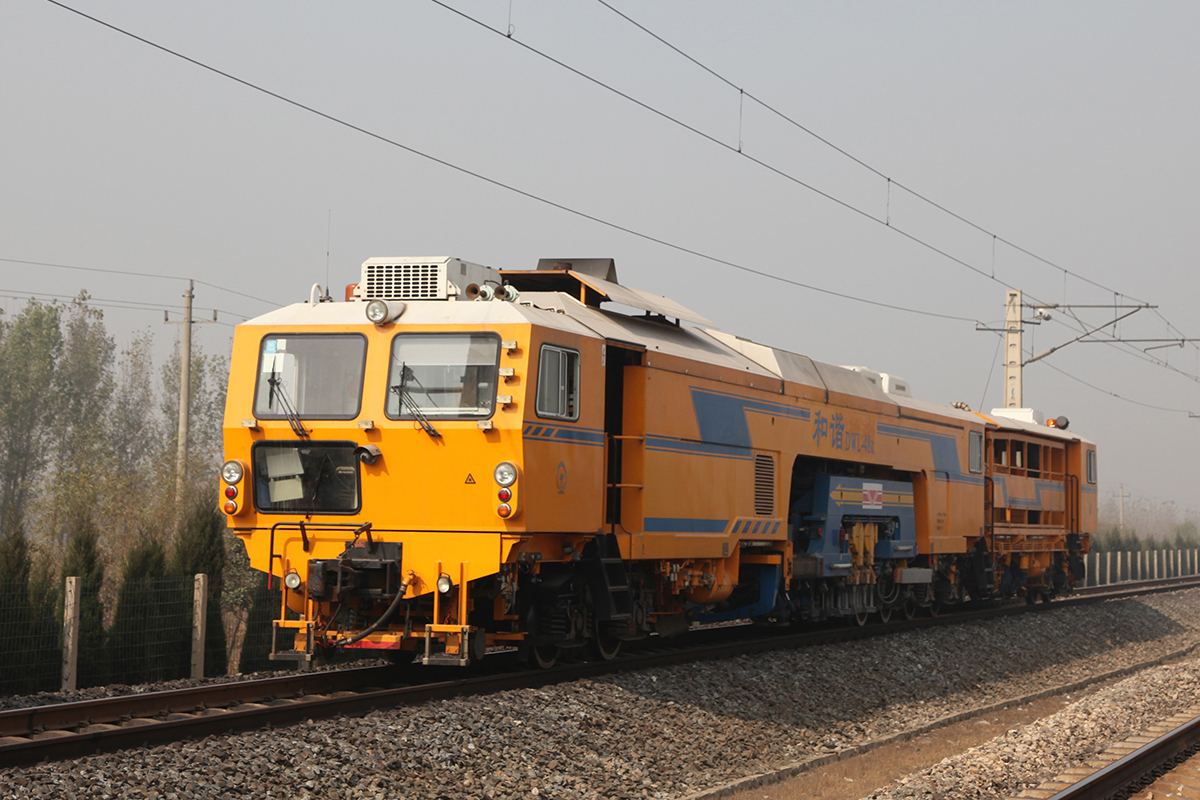

DWL-48 Continuous movement tamping and stabilizing machine

性能及特點

The DWL-48 Continuous Action Tamping and Stabilizing Machine can achieve the continuous three-sleeper tamping operation and stabilize the power of railway. In contrast with the two-sleeper continuous tamping machine, it enhances the working efficiency by approximately 30% ~ 40% . By virtue of the additional compound controlling track stabilizer, the tamped railway directly obtains a quite high precision and sufficient stable performance, and this allows the high-speed and full-load operation of railway after the railway is officially put into use.

The DWL-48 Continuous Action Tamping and Stabilizing Machine employs a three-sleeper tamping device, which can simultaneously tamp three sleeper during the course of working. In addition, this device is separable in structure so as to allow the tamping operation despite the uneven sleeper spacing and the complicated zone, and may be widened in accordance with requirements. If necessary, it may be used as a high-performance one-sleeper tamping machine. The flexible optional configuration of tamping device boosts the maneuverability and adaptability of whole machine.

The DWL-48 Continuous Action Tamping and Stabilizing Machine uses two DEUTZ water-cooled engines as the power source. During the course of high-speed travel, this machine utilizes the mode which combines mechanical transmission and static hydraulic transmission. Such a reasonable transmission configuration helps to save energy. Furthermore, a series of advanced technologies, such as the bi-dimensional laser measuring system, the double-hydraulic-drive-shaft bogie for working trolley and the new electric drive system, are provided for the machine. The model filled the gap in this field domestically, bringing the large-scale road maintenance machinery produced in China a world-class player. The machine plays an significant role in the nationwide railway speedups.

主要技術參數

Overall dimension (L × W × H):30670 mm × 3050 mm × 4130 mm

Total weight (unloaded):129 t

Pivot distance of bogies (I and Ⅲ):15800 mm

Pivot distance of bogies (I and Ⅲ):11000 mm

Wheelbase of bogie (I, Ⅲ and Ⅳ):1800 mm

Wheelbase of working trolley bogie:1500 mm

Wheel diameter of bogie (Ⅰ, Ⅲ and Ⅳ):Φ915 mm

Wheel diameter of working trolley bogie (Ⅱ):?Φ840 mm

Rated power of primary engine:?440 kW

Rated power of secondary engine:165 kW

Max. self-propelled speed:100 km/h

Max. towed speed:120 km/h

Working efficiency:1400m/h ~ 2300m/h

Working precision

Lateral level:±2 mm

Vertical; Height deflection measured between two points with a 10-m spacing:?≤ 3 mm

Versine; Maximum deflection of versine measured at the midpoint of a 10 m chord:?±2 mm

Excited frequency of stabilizing unit:?0 ~ 42 Hz

Max. exciting force of stabilizing unit:235 kN
