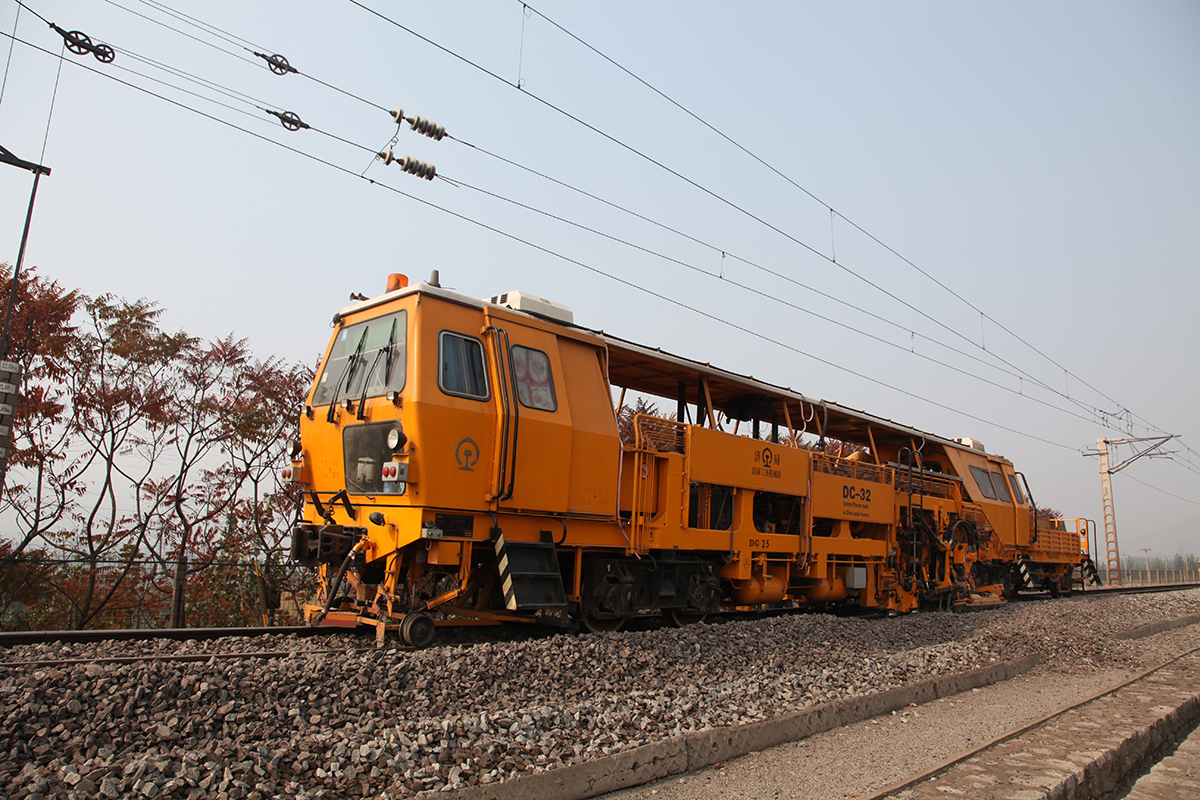

DC-32 Tamping Machine
性能及特點(diǎn)
The DC-32 Tamping Machine is a two-sleeper tamping machine and implements the stepping action mode during operation. This machine can achieve various tasks, such as the track lifting, track lining and leveling for railways and turnouts and the compacting for ballasts under sleeper on both steel track sides or at sleeper ends. As for this machine, the geometric parameters of railway track after operation may be measured and recorded by the on-board measuring system, and the operation may be carried out according to the set geometric parameters of track through the control system. If the speed-up bogie is used, the towed speed can be 120 km/h.
主要技術(shù)參數(shù)Overall dimension (L × W × H):?23200 mm × 3120 mm × 3750 mm
Curb weight:58 t
Gauge:1435 mm
Rated power of engine:235 kW
Maximum bidirectional self-propelled speed:?80 km/h or 100 km/h
Maximum towed speed:100 km/h or 120 km/h
Pivot distance of bogie:11000 mm
Wheelbase of bogie:1500 mm
Emergency braking distance:≤ 630 m (At a speed of 80 km/h on straight and level tracks)
Min. traveling radius:100 m
Minimum working radius:120 m
Working efficiency:1000 m/h ~ 1300 m/h
Working precision
Longitudinal level:?≤ 3 mm
Lateral level:±2 mm
Versine:±2 mm
